High Strength Structure
Engineered for high load capacity and reliable performance.

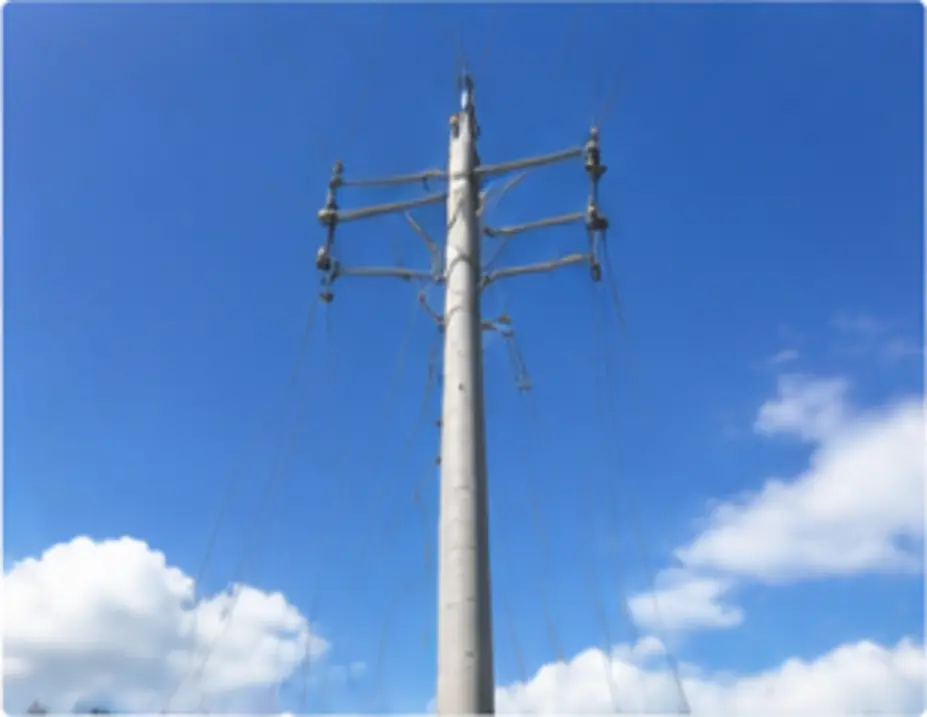

Distribution Poles
Distribution poles are used to support overhead power distribution lines in low and medium voltage networks. ZZ Steel Distribution Poles are designed for durability, safety and easy installation, providing reliable power distribution to communities and industries.
Reliable & Durable
Performance
Performance
Cost-Effective
Solution
Solution
Galvanized
Protection
Protection
Long Service
Life
Life
Product Overview
ZZ Steel Distribution Poles are engineered and manufactured according to international standards such as IEC, ASTM, AS/NZS and GB. They are widely used in overhead distribution networks to deliver electricity safely and efficiently in urban, rural and industrial areas.
Product TypeDistribution Pole
Voltage Level0.4kV – 35kV
MaterialQ235B / Q355B / Q420B
Surface TreatmentHot Dip Galvanized
Galvanizing StandardISO 1461 / ASTM A123
Design StandardIEC 60826 / ASTM A36 / GB/T 2694 / AS/NZS 4676
Wind SpeedUp to 60m/s
Seismic IntensityUp to 9 degree
Service LifeMore than 30 years
Key Features
Corrosion Protection
Hot dip galvanizing ensures excellent protection.
Easy Installation
Lightweight design and quick on-site assembly.
Cost Effective
Reliable quality with competitive price.
Long Service Life
More than 30 years of dependable service.
Types of Distribution Poles
Single Circuit
Pole
Double Circuit
Pole
Multi Circuit
Pole
Tangent
Pole
Angle
Pole
Dead End
Pole
Terminal
Pole
Technical Specifications (Example)
| Voltage Level (kV) | Pole Type | Height (m) | Top Diameter (mm) | Bottom Diameter (mm) | Wall Thickness (mm) | Design Wind Speed (m/s) | Design Standard |
|---|---|---|---|---|---|---|---|
| 0.4 | Single Circuit Pole | 6 – 9 | 114 – 140 | 190 – 230 | 4 – 6 | Up to 60 | IEC 60826 |
| 10 | Single Circuit Pole | 9 – 12 | 140 – 190 | 233 – 260 | 6 – 8 | Up to 60 | IEC 60826 |
| 15 | Double Circuit Pole | 10 – 15 | 160 – 200 | 260 – 320 | 6 – 8 | Up to 60 | IEC 60826 |
| 20 | Double Circuit Pole | 12 – 16 | 180 – 220 | 280 – 360 | 6 – 10 | Up to 60 | IEC 60826 |
| 35 | Multi Circuit Pole | 15 – 18 | 200 – 260 | 300 – 400 | 8 – 12 | Up to 60 | IEC 60826 |
Note: Data above for reference only. Custom design available according to project requirements.
Manufacturing Process
1Raw MaterialHigh-quality steel material inspection.
2CuttingCNC cutting for precise parts.
3FormingBending and shaping to exact dimensions.
4WeldingAutomatic welding ensures strong joints.
5GalvanizingHot dip galvanizing for protection.
6InspectionStrict quality inspection before delivery.
7Packing & DeliverySecure packing and timely shipment.
Project Cases
View All Projects →
Rural Distribution Project
in Philippines
Urban Power Distribution
Project in Thailand
Industrial Park Distribution
Project in Malaysia
Rural Electrification Project
in Kenya
Community Power Supply
Project in Peru
