Multi Circuit Towers
Maximum Capacity. Ultimate Reliability.
Multi Circuit Towers engineered for reliable power infrastructure projects.
High StrengthCorrosion ProtectionGlobal StandardsProject Delivery
Product Overview
Multi circuit transmission towers are engineered to carry three or more circuits on a single structure, significantly reducing right-of-way, minimizing environmental impact, and lowering overall transmission costs. Built for high capacity, long span and exceptional stability in the most demanding conditions.
DesignProject-specific engineering
MaterialQ235B / Q355B / Q420B
ProtectionHot-dip galvanized
StandardsIEC / ASTM / EN / GB
Key Features
Corrosion Resistance
Easy & Fast Installation
Long Service Life
Compliant with International Standards
TOWER TYPES (MULTI CIRCUIT)
THREE CIRCUIT TOWER Carries three sets of conductors.
FOUR CIRCUIT TOWER
Carries four sets of conductors.
FIVE CIRCUIT TOWER
Carries five sets of conductors.
TOWER TYPES (MULTI CIRCUIT)
THREE CIRCUIT TOWER
Carries three sets of conductors.
FOUR CIRCUIT TOWER
Carries four sets of conductors.
FIVE CIRCUIT TOWER
Carries five sets of conductors.
SIX CIRCUIT TOWER
Carries six sets of conductors.

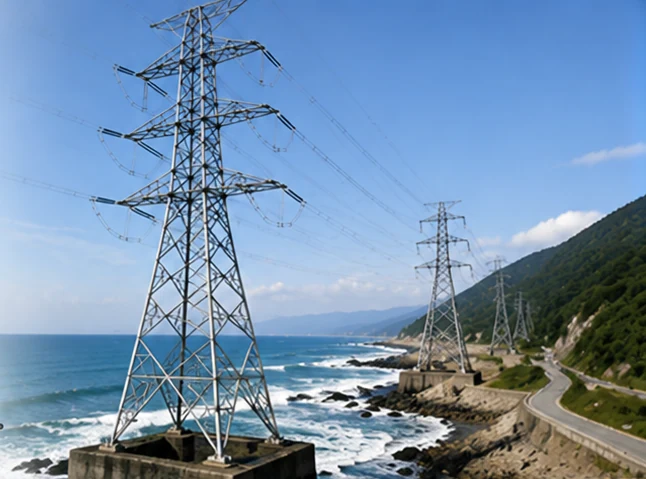

CUSTOM DESIGN
Tailored solutions for specific projects.
TECHNICAL SPECIFICATIONS
Item Specification
Circuit Type Multi Circuit (3 / 4 / 5 / 6 Circuits)
Voltage Range 66kV - 1000kV
Typical Height 25m - 90m (Customizable)
Span Range 300m - 1500m
Wind Load Up to 60m/s
Design Standard IEC 60826, ASTM A123, GB/T 2694
Steel Material Q355B / Q420B High Strength Steel
Surface Treatment Hot-dip Galvanized (≥85μm)
Application High Capacity Power Transmission Line
TOWER STRUCTURE
Main Components
Top Cross Arm
Upper Circuit
Middle Circuit
Lower Circuit
Tower Body
Diagonal Bracing
Leg
Anchor Bolt
DESIGN & STANDARDS
Our multi circuit towers are designed and manufactured in accordance with international standards to ensure safety, reliability and long-term performance.
Standards:
IEC
ISO
ASTM
GB
AS/NZS
TIA
APPLICATIONS
Ultra High Voltage Power Transmission
High Capacity Power Grids
Mountainous Regions
Long Span Crossings
Urban & Industrial Power Supply
Large Scale Grid Projects
PROJECT SERVICE ADVANTAGES
HIGH QUALITY
Strict Quality Control
GLOBAL SUPPLY
Export to 30+ Countries
PROFESSIONAL SERVICE
Before & After Sales Support
Manufacturing Process
Controlled production from certified raw material to export-ready delivery.
01Raw Material InspectionDocumented process control
02CNC CuttingDocumented process control
03Forming & DrillingDocumented process control
04Qualified WeldingDocumented process control
05Hot-Dip GalvanizingDocumented process control
06Trial AssemblyDocumented process control
07Final InspectionDocumented process control
08Packing & DeliveryDocumented process control
Project References
Representative transmission towers solutions for international infrastructure projects.
Multi Circuit Towers · Project 01
Multi Circuit Towers · Project 02
Multi Circuit Towers · Project 03
Multi Circuit Towers · Project 04Need reliable Multi Circuit Towers solutions?
Share voltage, standards, loading, quantity and destination requirements with our team.
